Container storage
Ten 40-ft containers arranged five across and two high, with a dedicated loading platform and stair access.
Industrial / site development
74 Chisholms
Avenue.
Concept design and visualization for the redevelopment of a corner property into a secure, functional warehouse yard with stacked container storage, a prefab office, parking and truck loading circulation.
Explore the project
Image1.pngUpload final render
Project overview
A working yard first.
The layout is organized around truck access, loading operations and clear separation between heavy-vehicle movement and day-to-day office use.
Prefab office
A two-storey office positioned toward the front of the property, with a footprint shown at approximately 29 ft × 21 ft 3 in on the current dimensional plan, plus adjacent parking and restrained landscaping.
Truck movement
The central asphalt yard remains open so a trailer truck can reverse in from Wigton Ave and back toward the container loading area.
Parking strategy
Five designated parking spaces are provided. When the yard is not being used for active loading or offloading, the open lot can also accommodate additional vehicles.
Additional parking potential
Two additional parking spaces may also be accommodated along the left side of the storage containers, subject to maintaining the required truck access and loading clearances.
Current dimensional reference
Key site specifications.
Dimensions shown reflect the current concept model and are intended to communicate the proposed site arrangement, access and perimeter treatment.
Clear gate width at the primary vehicular entrance.
Masonry wall height, with 5 ft grille work between columns. Columns extend to 14 ft.
Reduced wall height approaching the main entrance.
Full-height dividing walls along the adjoining property boundaries.
Wall thickness with 18 in × 18 in structural columns.
Approximate spacing between perimeter wall columns.
Overall footprint of the stacked container storage bank shown on the current plan.

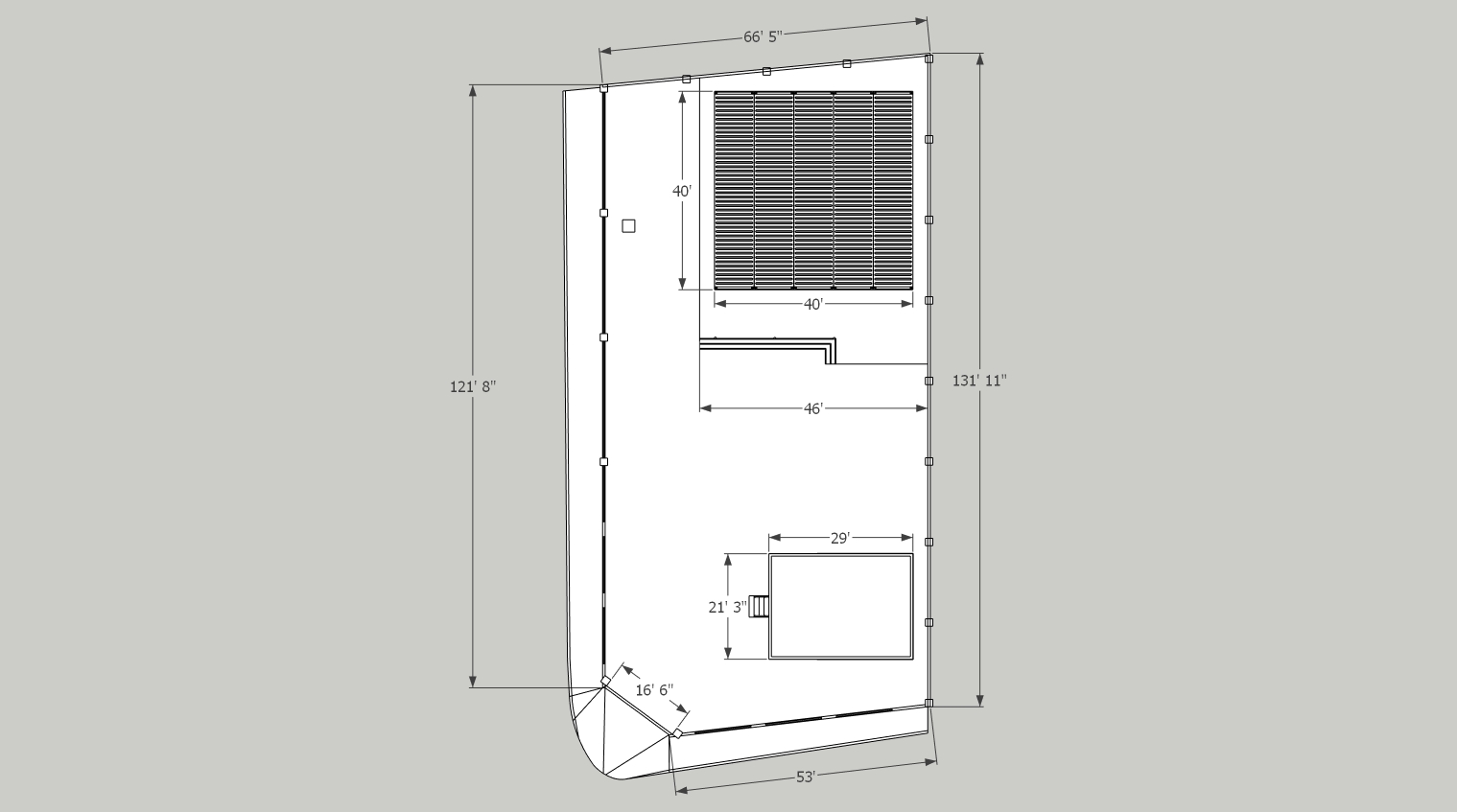

Current modeled office footprint as shown on the dimensional site drawing.
Project walkthrough
See the site in motion.
A video walkthrough of the proposed warehouse yard, showing the office, container loading area, parking and the open truck manoeuvring space.
Final presentation
Project views.
Select any view to open it full screen.
Image1.pngAerial site context
Image2.pngOffice & yard overview
Image3.pngContainer loading area
Image4.pngOffice & parking
Image5.pngStreet & entrance view
Image6.jpgTop-down site layout
Plans & dimensions
Technical views.

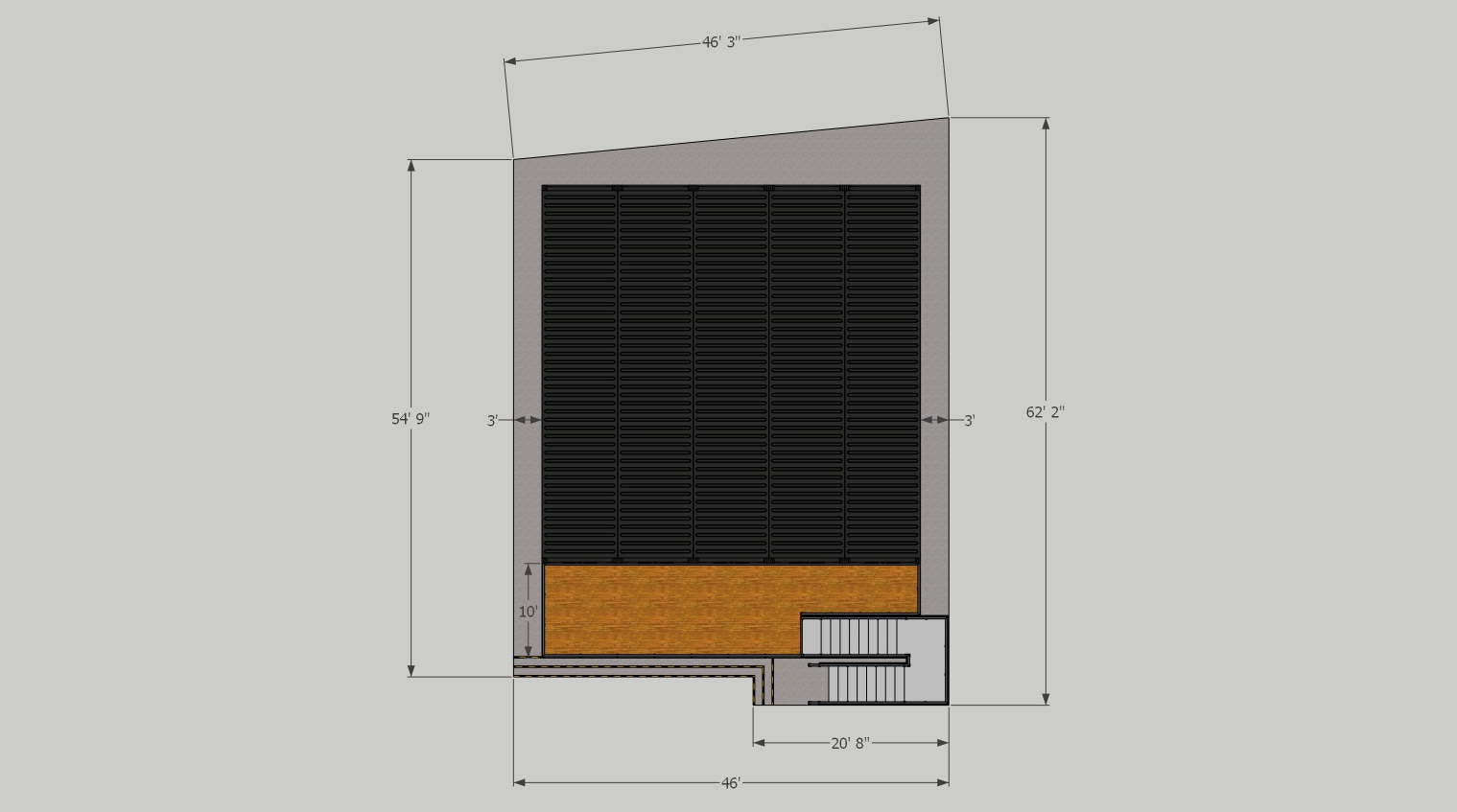

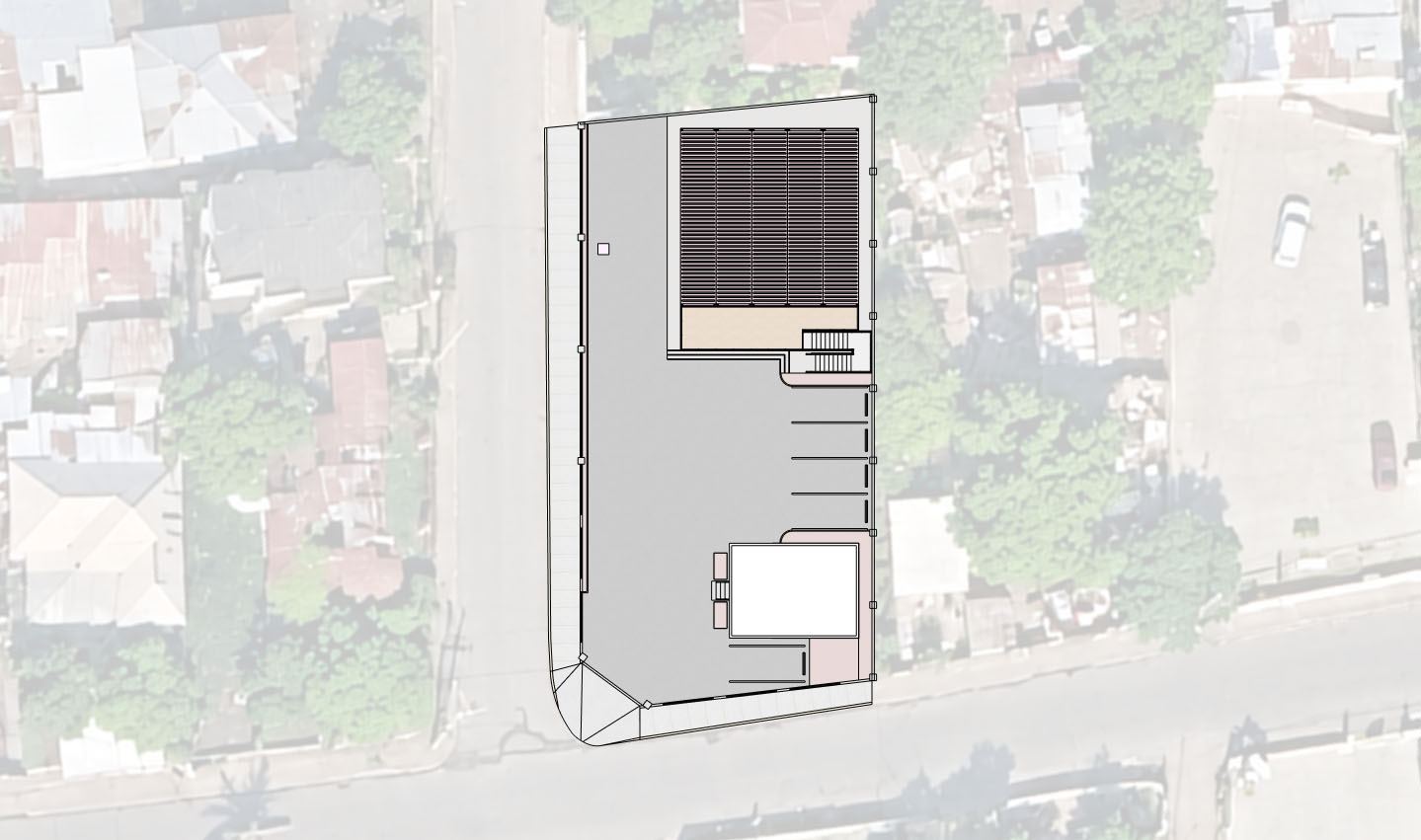

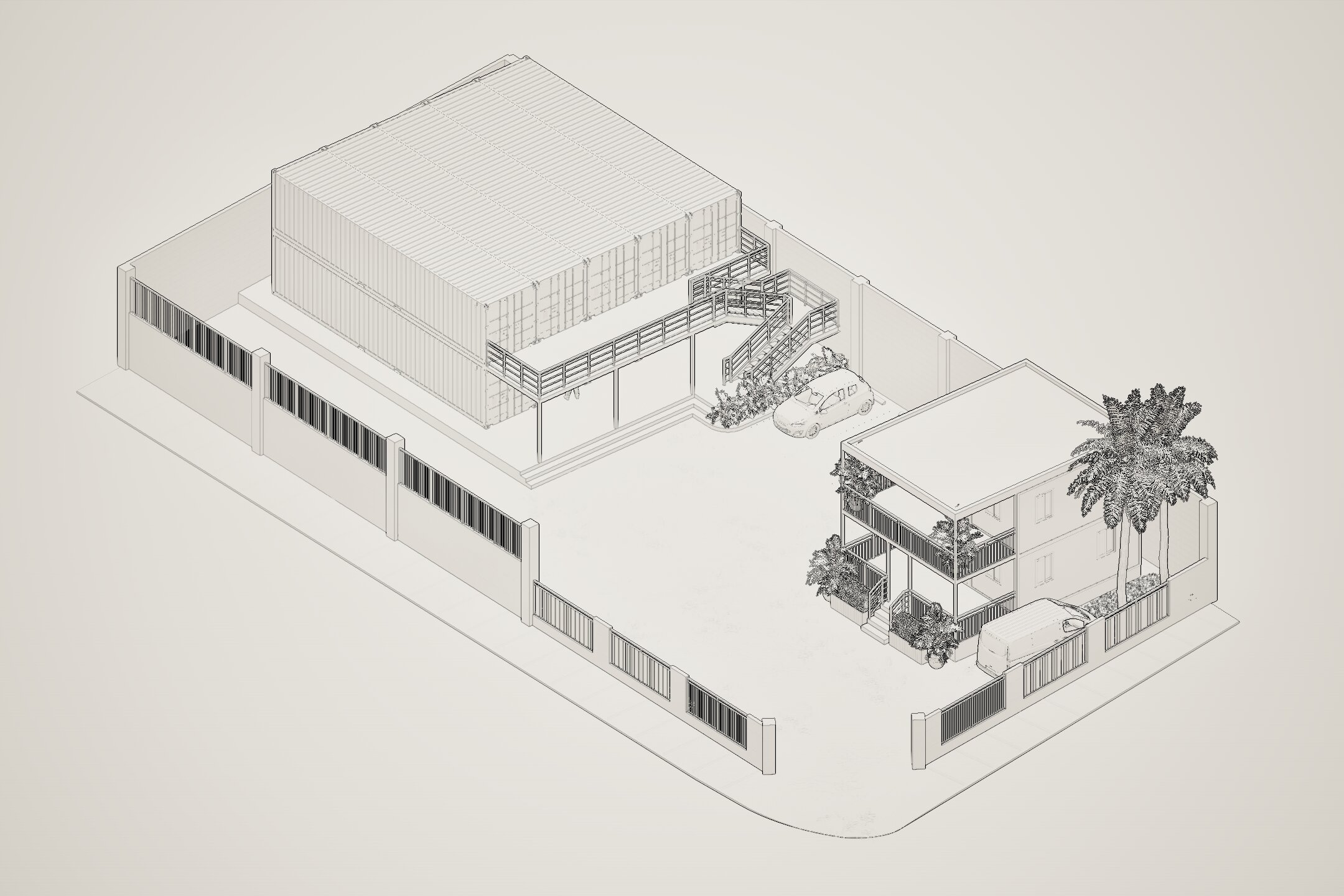

Dimensioned references for the overall site, storage/loading area and supporting design development.
